Nissan Pathfinder: Heater & Air Conditioning System - Preparation

Nissan Pathfinder (R53) 2022-2025 Service Manual / Ventilation, Heater & Air Conditioner :: Heater & Air Conditioning System / Preparation

Special Service Tool

The actual shape of the tools may differ from those illustrated here.
Tool number (TechMate No.) Tool name		Description

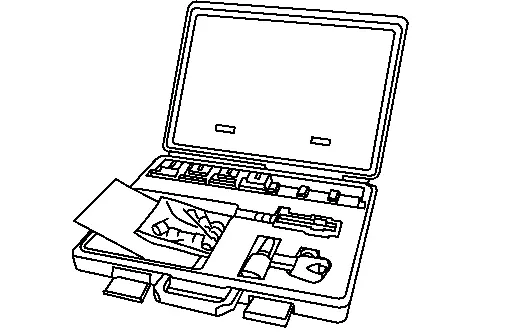

— (NI-41425-NIS) Aluminum tube repair kit		Repairing leaks in A/C tubes

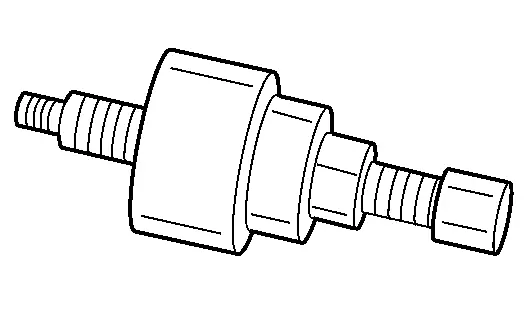

— (NI-38873-A) Drive plate installer		Installing pulley

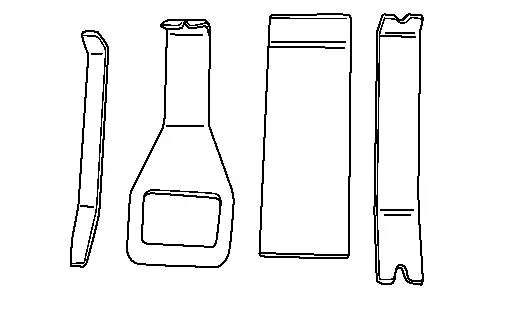

— (NI-46534) Trim Tool Set		Removing trim components

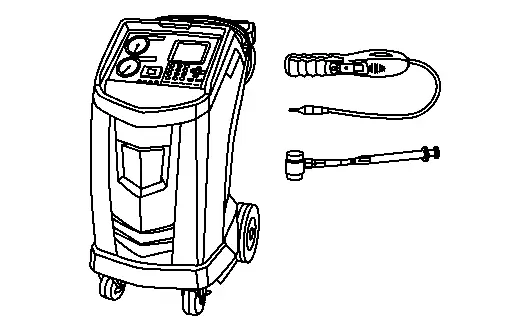

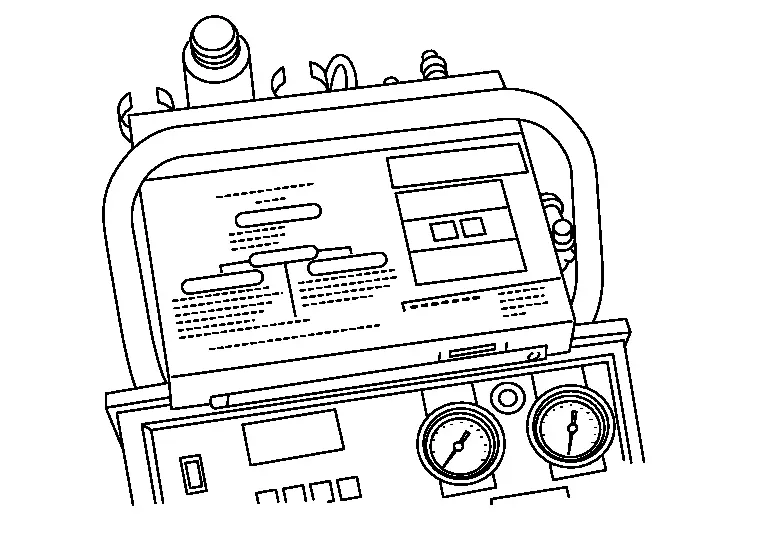

— (NI-52405) R1234YF AC RRR Machine		Refrigerant recovery, recycling and recharging

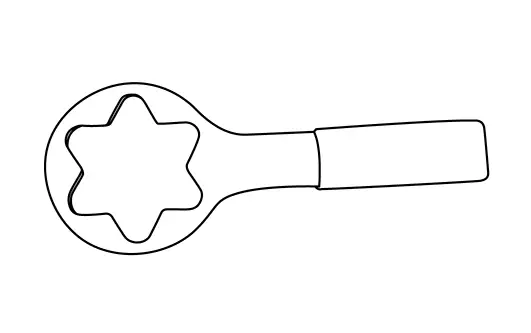

— (NI-52173) AC clutch service tool		Removing magnet clutch

HFO-1234yf (R-1234yf) Service Tool and Equipment

Do not mix HFO-1234yf (R-1234yf) refrigerant and/or its specified oil with HFC-134a (R-134a) refrigerant and/or its oil.

Separate and non-interchangeable service equipment must be used for handling each type of refrigerant/oil.

Refrigerant container fittings, service hose fittings and service equipment fittings (equipment which handles refrigerant and/or oil) are different between HFC-134a (R-134a) and HFO-1234yf (R-1234yf). This is to avoid mixed use of the refrigerants/oil.

Adapters that convert one size fitting to another must not be used. Refrigerant/oil contamination will occur and compressor failure will result.

Tool number (TechMate No.) Tool name	Description

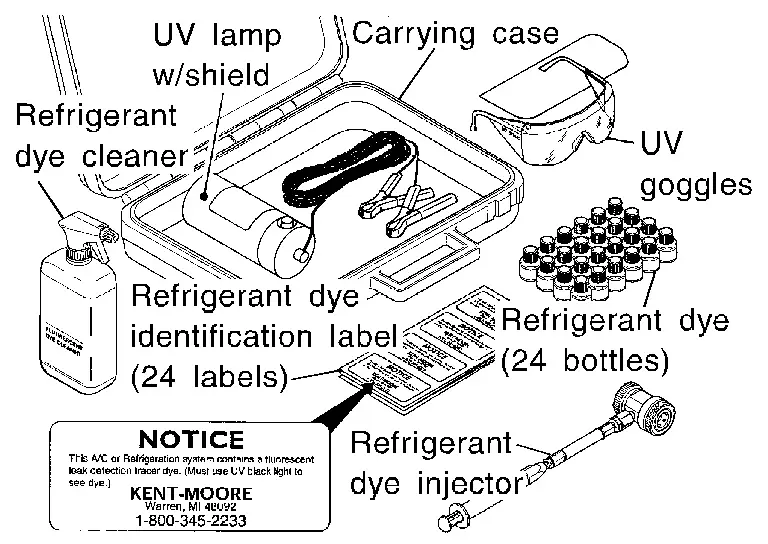

(NI-43926) Refrigerant dye leak detection kit Kit includes: UV lamp and UV safety goggles Refrigerant dye injector Fluorescent leak detection dye (box of 24, 1/4 ounce bottles) Refrigerant dye cleaner		Power supply: DC 12V (battery terminal)

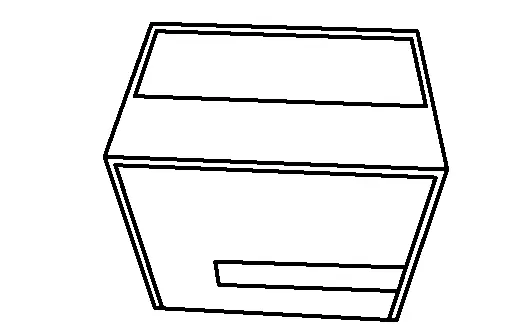

(NI-52990)		Fluorescent Oil Dye

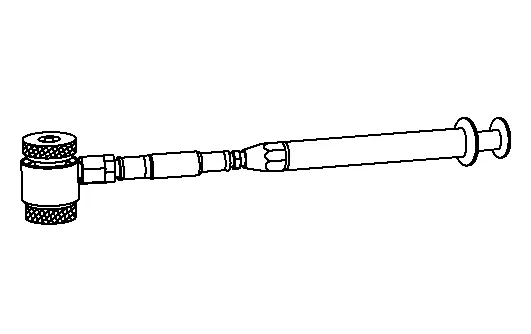

(42–18465) R-1234YF PAG Oil Labeled Syringe-type Injector		Oil Syringe-type Injector

Tool number

(TechMate No.)

Tool name

Description

(NI-43926)

Refrigerant dye leak detection kit

Kit includes:

UV lamp and UV safety goggles
Refrigerant dye injector
Fluorescent leak detection dye (box of 24, 1/4 ounce bottles)
Refrigerant dye cleaner

Power supply:

DC 12V (battery terminal)

(NI-52990)

Fluorescent Oil Dye

(42–18465)

R-1234YF PAG Oil Labeled Syringe-type Injector

Oil Syringe-type Injector

Commercial Service Tool

(TechMate No.) Tool name		Description

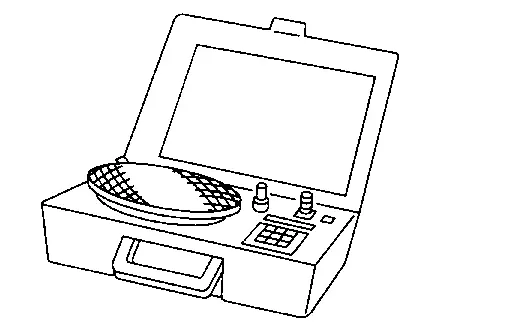

(NI-41810-NI) Refrigerant identifier equipment (R-1234yf)		For checking refrigerant purity and system contamination

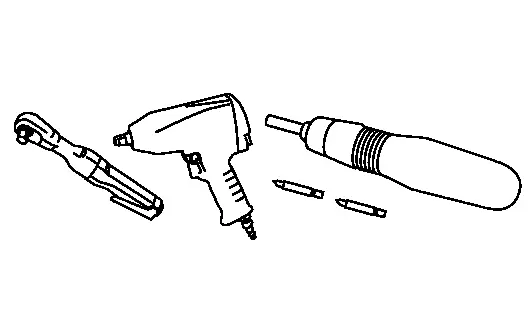

( — ) Power tool		Loosening nuts, screws and bolts

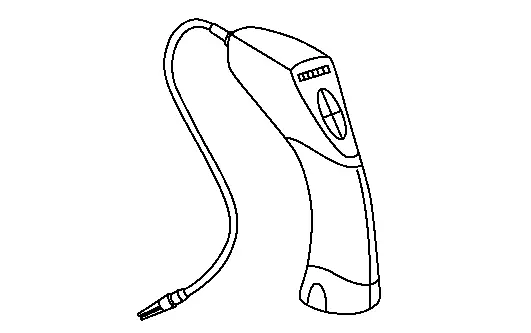

(TIFZX) Electronic refrigerant leak detector		Detects refrigerant leaks
(NI-39699) Refrigerant weight scale		For measuring of refrigerant Fitting size-Thread size 1/2”-16 ACME

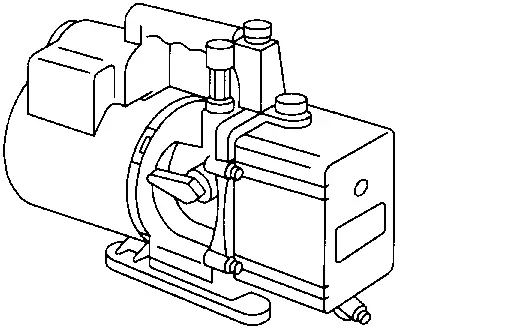

(NI-39649) Vacuum pump (Including the isolator valve)		Capacity: Air displacement: 4 CFM Micron rating: 20 microns Oil capacity: 482 g (17 oz) Fitting size-Thread size 1/2”-16 ACME

Sealant and/or Oil

Tool number (TechMate No.) Tool name	Description

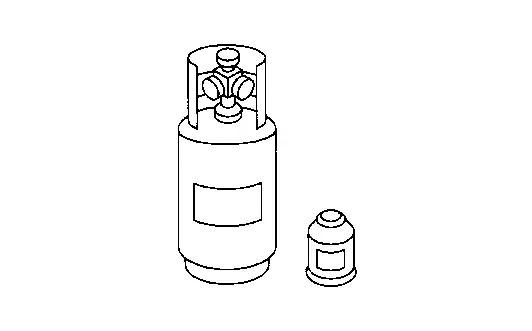

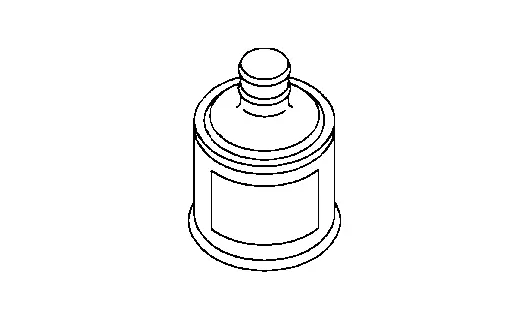

— ( — ) HFO-1234yf (R-1234yf) Refrigerant		Container marking: HFO-1234yf (R-1234yf)
— ( — ) A/C System Oil: Polyalkylene glycol oil (PAG)		Type: Polyalkylene glycol oil (PAG), type VC100YF Application: HFO-1234yf (R-1234yf) compressors

Tool number

(TechMate No.)

Tool name

Description

—

( — )

HFO-1234yf (R-1234yf) Refrigerant
