Nissan Pathfinder: Power Supply, Ground & Circuit Elements - Precautions. Preparation. Service Data and Specifications (SDS)
Precautions Nissan Pathfinder Fifth generation
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of collisions.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” sections of this Service Manual.
WARNING:
Always observe the following items for preventing accidental activation:
-
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in the event of a collision that would result in air bag inflation, it is recommended that all maintenance and repair be performed by an authorized NISSAN/INFINITI dealer.
-
Improper repair, including incorrect removal and installation of the SRS, can lead to personal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag Module, see “SRS AIR BAG”.
-
Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
Always observe the following items for preventing accidental activation:
-
When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the ignition/power switch ON or engine running, never use air or electric power tools or strike near the sensor(s) with a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing serious injury.
-
When using air or electric power tools or hammers, always switch the ignition/power switch OFF, disconnect the 12V battery or batteries, and wait at least 3 minutes before performing any service.
Precautions for Shift By Wire
To avoid the risk of minor injury or property damage:
If the 12-volt battery has low or no voltage, the transmission cannot be shifted. Replace the battery or repair the damaged power supply system. If towing the Nissan Pathfinder vehicle, follow the tow procedure (Refer to Tow Truck Towing).
Preparation Nissan Pathfinder 2022
Special Service Tools
The actual shape of the tools may differ from those illustrated here.
|
Tool number (TechMate No.) Tool name | Description | |
|---|---|---|
|

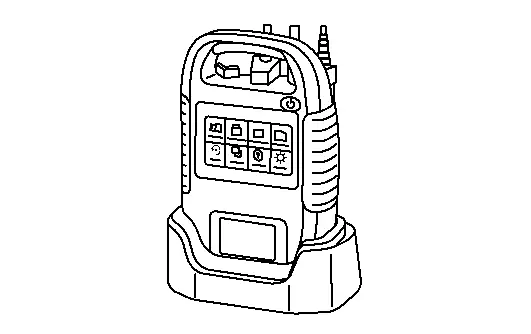

165–DSS-5000P (—) Midtronics Hand-Held Battery Tester |
|
Tests the batteries and the starting and charging systems. For operating instructions, refer to diagnostic analyzer instruction manual. |
|

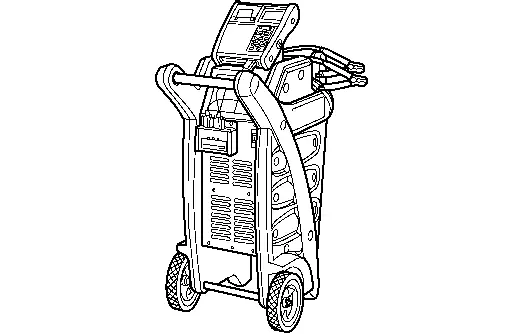

165-GR8-1200KIT (—) Midtronics Battery Charger and Tester |
|
Tests the batteries and the starting and charging systems. For operating instructions, refer to diagnostic station instruction manual. |
Commercial Service Tool
| Tool name | Description | |
|---|---|---|

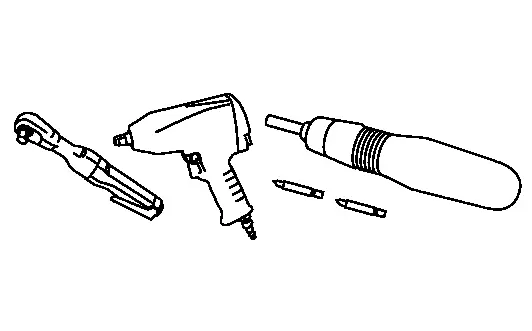

| Power tool |
|
Loosening nuts, screws and bolts |
Service Data and Specifications (SDS) Nissan Pathfinder 2025
Battery
| Type | L3 EFB | L4 EFB | |
|---|---|---|---|
| 20 hour rate capacity | [V–Ah] | 12–70 | 12–85 |
| Cold cranking current (For reference value) | [A] | 720 | 760 |
Nissan Pathfinder (R53) 2022-2025 Service Manual
Precautions. Preparation. Service Data and Specifications (SDS)
