Nissan Pathfinder: Power Control System - Removal and Installation

• Bcm (body Control Module)
• Push-Button Ignition Switch

Bcm (body Control Module) Nissan Pathfinder 5th Gen

Removal and Installation

For removal and installation of the BCM (Body Control Module), refer to Removal and Installation.

Push-Button Ignition Switch Nissan Pathfinder 2025

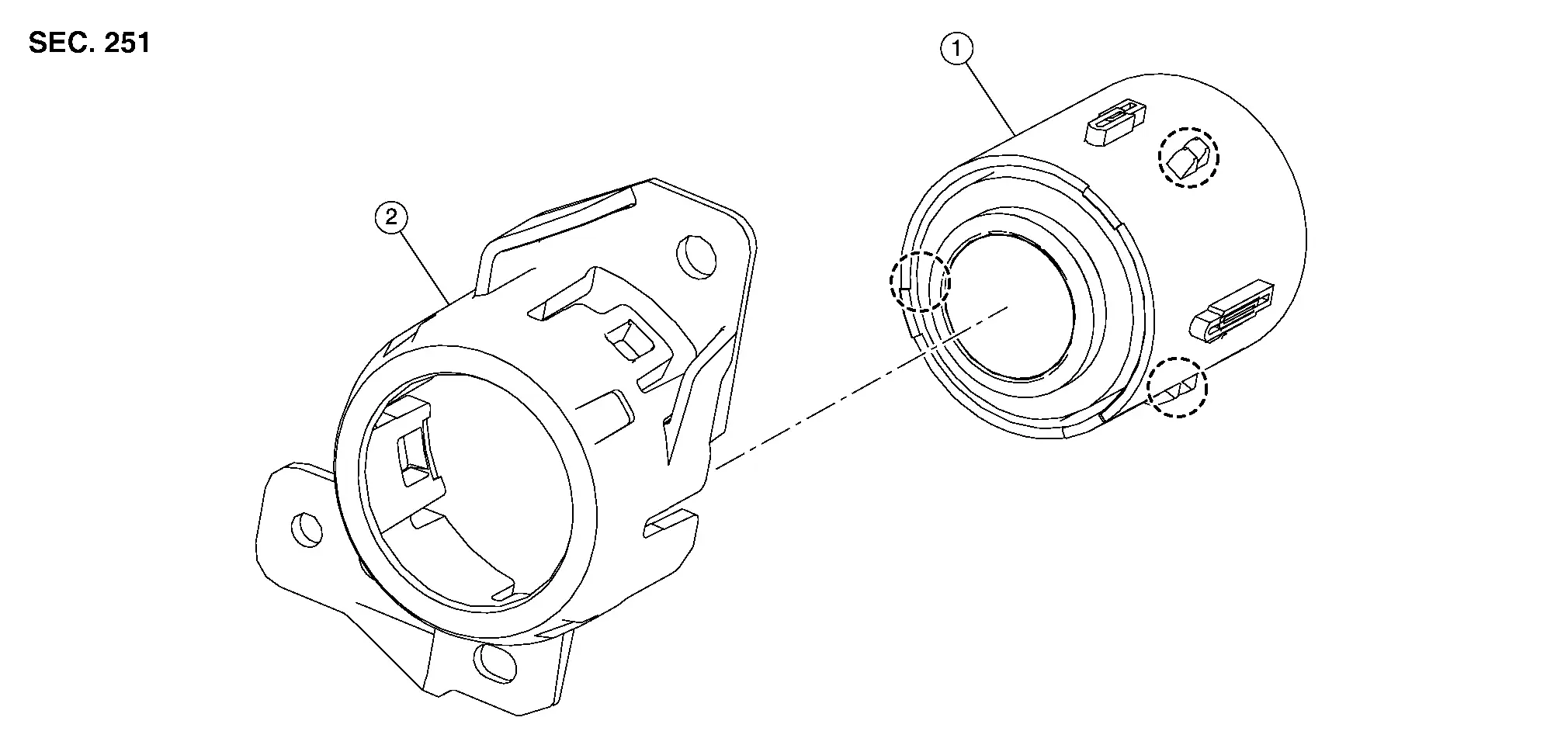

Exploded View

1.

Push-button ignition switch

2.

Push-button ignition switch bracket

Pawl

Removal and Installation

REMOVAL

Remove cluster lid C. Refer to Removal and Installation.

Disconnect the harness connector from the push-button ignition switch.

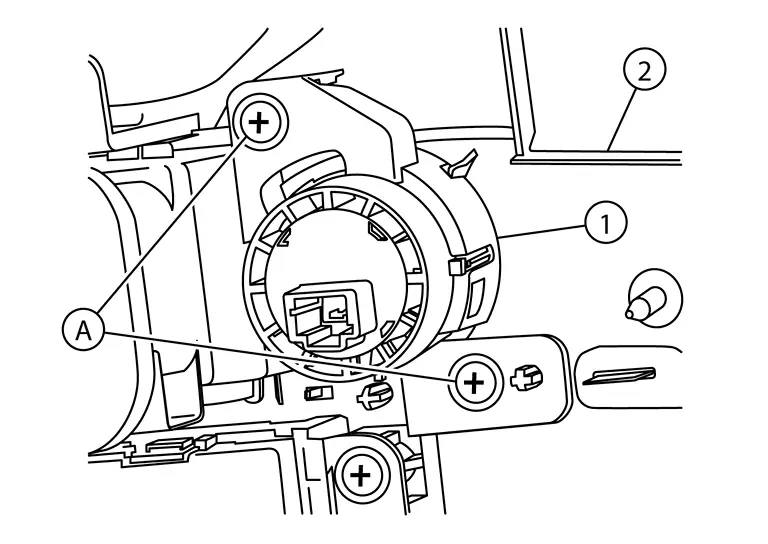

Remove the push-button ignition switch bracket (1) screws (A) from the instrument finisher C (2).

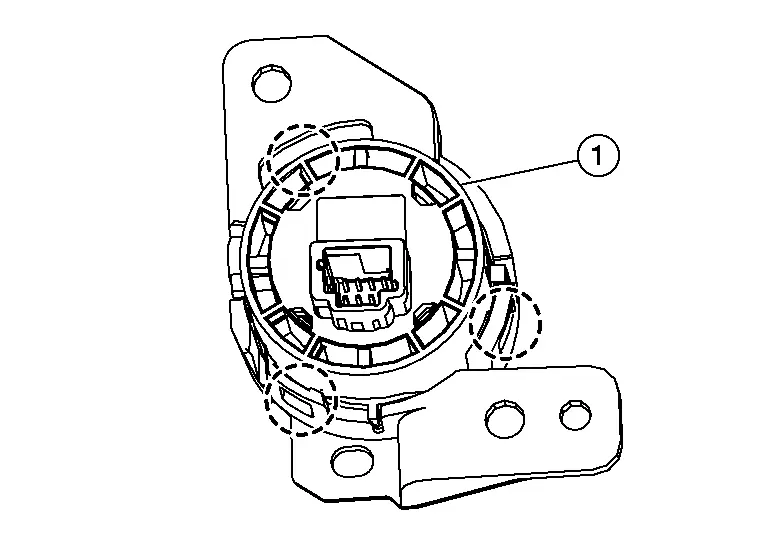

Using a suitable tool, release pawls and remove the push-button ignition switch (1) from the push-button ignition switch bracket.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.
