Nissan Pathfinder: Do-it-yourself - Fuses

Basic Information

If any electrical equipment does not operate, check for an open fuse.

Fuses are used in the passenger and engine compartment. Spare fuses are provided and can be found in the passenger compartment fuse box.

When installing a fuse make sure the fuse is installed in the fuse box securely.

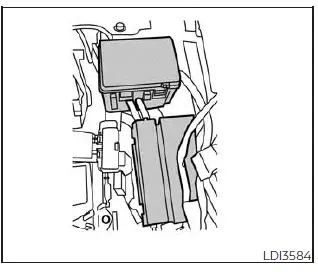

Engine compartment

Basic Information

WARNING Never use a fuse of higher or lower amperage rating than that specified on the fuse box cover. This could damage the electrical system or electronic control units or cause a fire.

If any electrical equipment does not come on, check for an open fuse.

1. Be sure the ignition switch and the headlight switch are OFF.

2. Open the engine hood.

3. Remove the fuse box cover by pushing the tab and lifting the cover up.

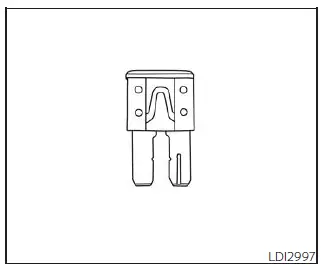

4. Remove the fuse with the fuse puller.

The fuse puller is located in the fuse block in the passenger compartment.

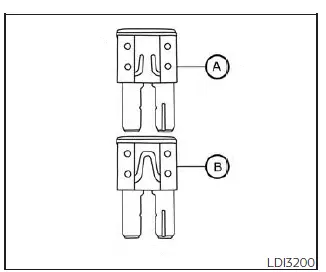

5. If the fuse is open A , replace it with a new fuse B .

6. If a new fuse also opens, have the electrical system checked and repaired. It is recommended that you visit a NISSAN dealer for this service.

Fusible links

If the electrical equipment does not operate and fuses are in good condition, check the fusible links. If any of these fusible links are melted, replace with only Genuine NISSAN parts.

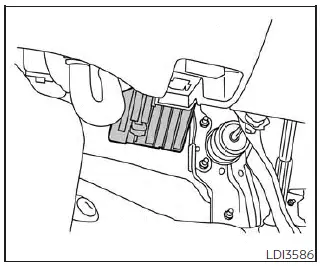

Passenger compartment

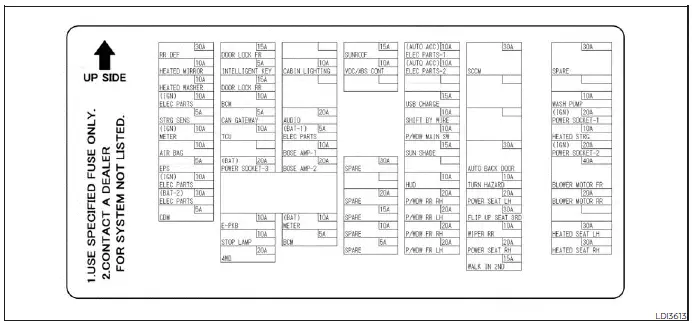

WARNING Never use a fuse of higher or lower amperage rating than that specified on the fuse box diagram. This could damage the electrical system or electronic control units or cause a fire.

If any electrical equipment does not operate, check for an open fuse.

1. Be sure the ignition switch and the headlight switch are OFF.

2. Remove the fuse with the fuse puller.

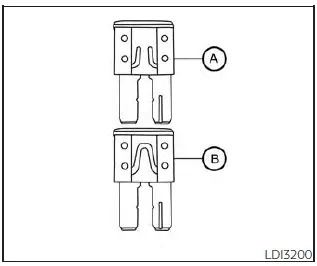

3. If the fuse is open A , replace it with an equivalent good fuse B .

4. If a new fuse also opens, have the electrical system checked and repaired. It is recommended that you visit a NISSAN dealer for this service.
