Nissan Pathfinder: Srs Air Bag Control System - Diagnosis Sensor Unit

Nissan Pathfinder (R53) 2022-2025 Service Manual / Restraints :: Srs Air Bag Control System / Ecu Diagnosis Information / Diagnosis Sensor Unit

DTC Index

DTC	Diagnostic item	Reference page
U1000–01	CAN COMM CIRCUIT	Diagnosis Procedure
U1010–49	CONTROL UNIT (CAN)	Diagnosis Procedure
U2148	CAN comm err (brake control unit)	DTC Description
U214E	CAN comm err (combination meter)	DTC Description
U215B	CAN comm err (IPDM E/R)	DTC Description
U215F	CAN comm err (laser/radar )	DTC Description
U2141	CAN comm err (TCM)	DTC Description
U2148	CAN comm err (brake control unit)	DTC Description
U2176	CAN comm err (CCM/ST angle sensor)	DTC Description
U2152	CAN comm err (ADAS control unit)	DTC Description
U0073–00	Control module comm Bus A Off	DTC Description
B0001	DRIVER AIR BAG MODULE	DTC Description
B0002	DRIVER AIR BAG MODULE 2	DTC Description
B0010	ASSIST A/B MODULE	DTC Description
B0011	ASSIST A/B MODULE 2	DTC Description
B0020	SIDE A/B MODULE LH	DTC Description
B0021	CURTAIN A/B MODULE LH	DTC Description
B0028	SIDE A/B MODULE RH	DTC Description
B0029	CURTAIN A/B MODULE RH	DTC Description
B0091	DOOR SATEL SENS LH	DTC Description
B0093	C-PILLAR SAT SEN LH	DTC Description
B0094	CRASH ZONE SENS	DTC Description
B0096	DOOR SATEL SENS RH	DTC Description
B0098	C-PILLAR SAT SEN RH	DTC Description
B00A0	OCCUPANT SENS UNIT	DTC Description
B00D5	PASS A/B INDICATOR	DTC Description
B0030	REAR SIDE A/B MODULE LH	DTC Description
B0038	REAR SIDE A/B MODULE RH	DTC Description
B0052	Front seat belt buckle switch RH	DTC Description
B0073	PRE-TEN REAR LH	DTC Description
B0075	PRE-TEN REAR RH	DTC Description
B1000	Air bag diagnosis sensor unit	DTC Description
B1001	Lap pre-tensioner LH	DTC Description
B1002	Lap pre-tensioner RH	DTC Description
B1004	Passenger air bag module active vent	DTC Description
B1029-09	PRE-TEN FRONT LH [SHORT]	DTC Description
B1029-11	PRE-TEN FRONT LH [GND-SHORT]
B1029-12	PRE-TEN FRONT LH [VB-SHORT]
B1029-13	PRE-TEN FRONT LH [OPEN]
B1029-1A	PRE-TEN FRONT LH [SHORT]
B1029-1B	PRE-TEN FRONT LH [ABOVE]
B1029-55	PRE-TEN FRONT LH [CONFIGURATION]
B1036	Ignition voltage	DTC Description
B1040–22	Nissan Pathfinder Vehicle speed	DTC Description
B1041–82	Nissan Pathfinder Vehicle speed signal	DTC Description
B101B	Far side air bag module LH	DTC Description
B107B–55	ECU setting	DTC Description
B100E	Knee air bag module RH	DTC Description
B102A	Front seat belt pre-tensioner RH	DTC Description
B1428	BUCKLE SW LH	DTC Description
B1429	BUCKLE SW RH	DTC Description
B1430	PRE-TEN FRONT LH	DTC Description
B1431	PRE-TEN FRONT RH	DTC Description
B1432	PRE-TEN FRONT LH2	DTC Description
B1436	ACTIVE VENT	DTC Description
B1433	PRE-TEN FRONT RH2	DTC Description
B12B5–97	Frontal collision	DTC Description
B12B6–97	Side collision	DTC Description
B12B7–97	Rollover detection	DTC Description
B12BA–97	Air bag disposal completion	DTC Description
B142A	IGNITION VOLTAGE	DTC Description
B1400–00	CONTROL UNIT [UNIT MALFUNC]	DTC Description
B1401–00
B1402–00
B1403–00
B1404–00
B1405–00
B1406–00
B1407–00
B1408–00
B1409–00
B1410–00
B1411–00
B1412–00
B1413–00
B1414–00
B1415–00
B1416–00
B1417–00
B1418–00
B1419–00
B1420–00
B1421–00	FRONTAL COLLISION	DTC Description
B1422–00	SIDE COLLISION
B1423–00	ROLLOVER DETECTION
B1425–00	REAR COLLISION
B1500	DOOR SATELLITE SENSOR	DTC Description

Flash Code Index

WARNING LAMP FLASH CODE CHART

How to read flash codes

Put the vehicle in Diagnosis Mode. Refer to Trouble Diagnosis without CONSULT.
All codes are proceeded by a seven second “holding” flash.
Identify how many primary flashes are displayed as well as the length of each primary flash.
Refer to the tables and examples below to determine which SRS subsystem the code belongs to.
Count the short secondary flashes that follow the primary flashes.
Match the correct flashing pattern to the malfunctioning component and perform the Diagnosis Procedure.

Refer to the illustrations below for an example of each flashing pattern.

Front subsystem

Flashes (Primary)	Flash Length (seconds)	Flashes (Secondary)	Malfunctioning Component or Circuit	Reference

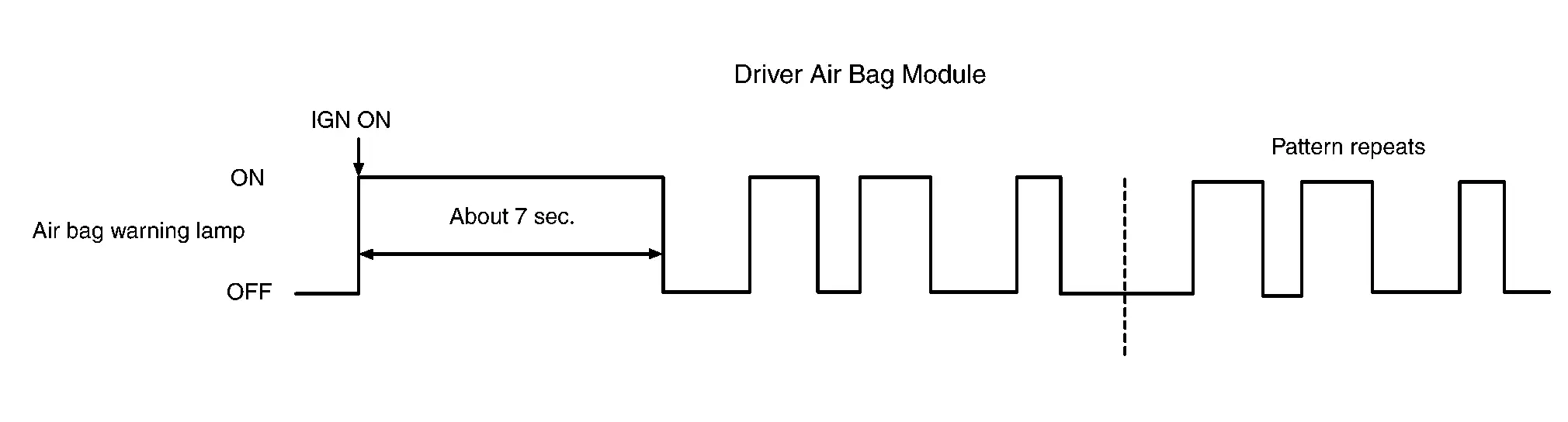

2	1.5	1	Driver air bag module	Diagnosis Procedure (B0001) Diagnosis Procedure (B0002)
		2	Passenger air bag module	Diagnosis Procedure (B0010) Diagnosis Procedure (B0011)
		3	Front LH seat belt pre-tensioner	Diagnosis Procedure
		4	Front RH seat belt pre-tensioner	Diagnosis Procedure
		5	Front LH lap pre-tensioner	Diagnosis Procedure
		6	Front RH lap pre-tensioner	Diagnosis Procedure

Side subsystem

Flashes (Primary)	Flash Length (seconds)	Flashes (Secondary)	Malfunctioning Component or Circuit	Reference

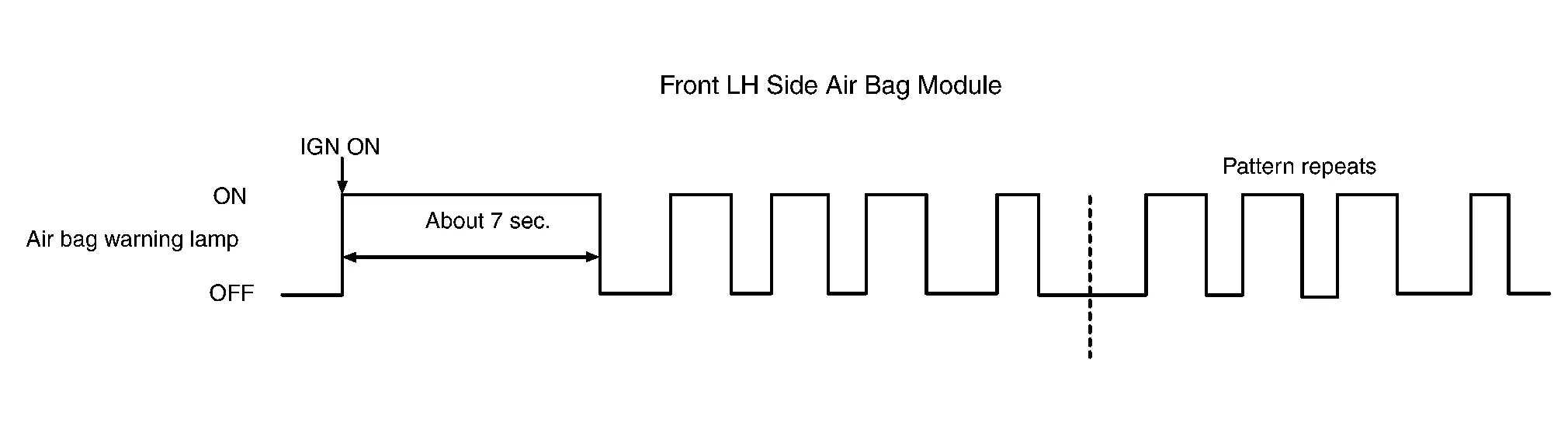

3	1.5	1	Front LH side air bag module	Diagnosis Procedure
		2	Front RH side air bag module	Diagnosis Procedure
		3	LH side curtain air bag module	Diagnosis Procedure
		4	RH side curtain air bag module	Diagnosis Procedure

Air bag subsystem

Flashes (Primary)	Flash Length (seconds)	Flashes (Secondary)	Malfunctioning Component or Circuit	Reference
1	3	1	Collision detection	Diagnosis Procedure

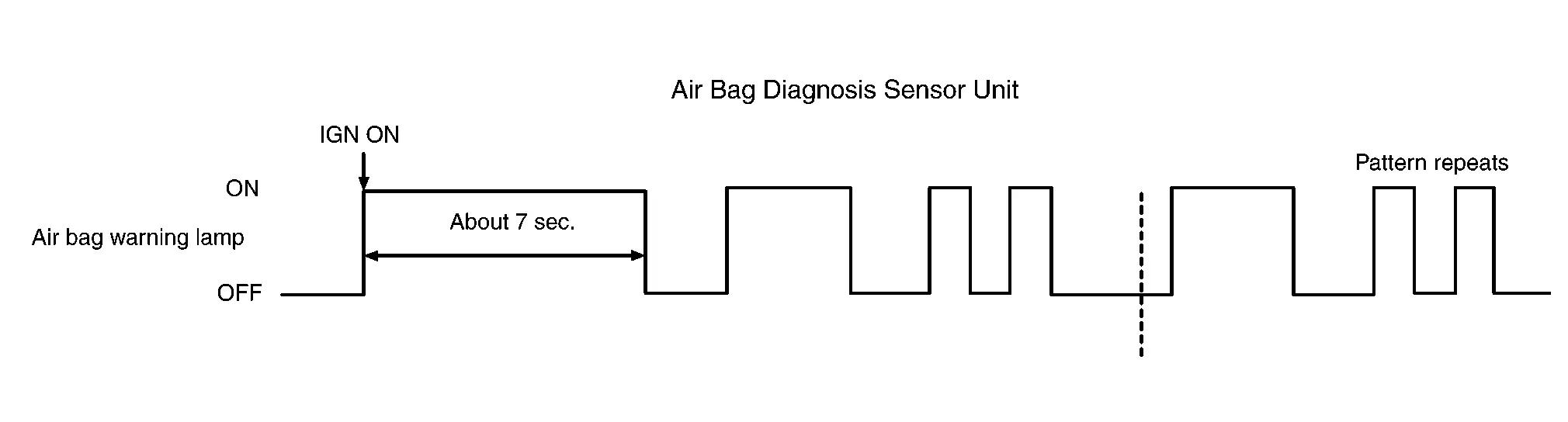

		2	Air bag diagnosis sensor unit	Diagnosis Procedure
		3	Passenger air bag OFF indicator	Diagnosis Procedure
		4	Occupant classification system	Diagnosis Procedure (B00A0-00, -02 or -09),Diagnosis Procedure (B00A0-04),Diagnosis Procedure (B00A0-83, -86, -87, -88 or -8F),Diagnosis Procedure (B00A0-93),

Sensor subsystem

Flashes (Primary)	Flash Length (seconds)	Flashes (Secondary)	Malfunctioning Component or Circuit	Reference

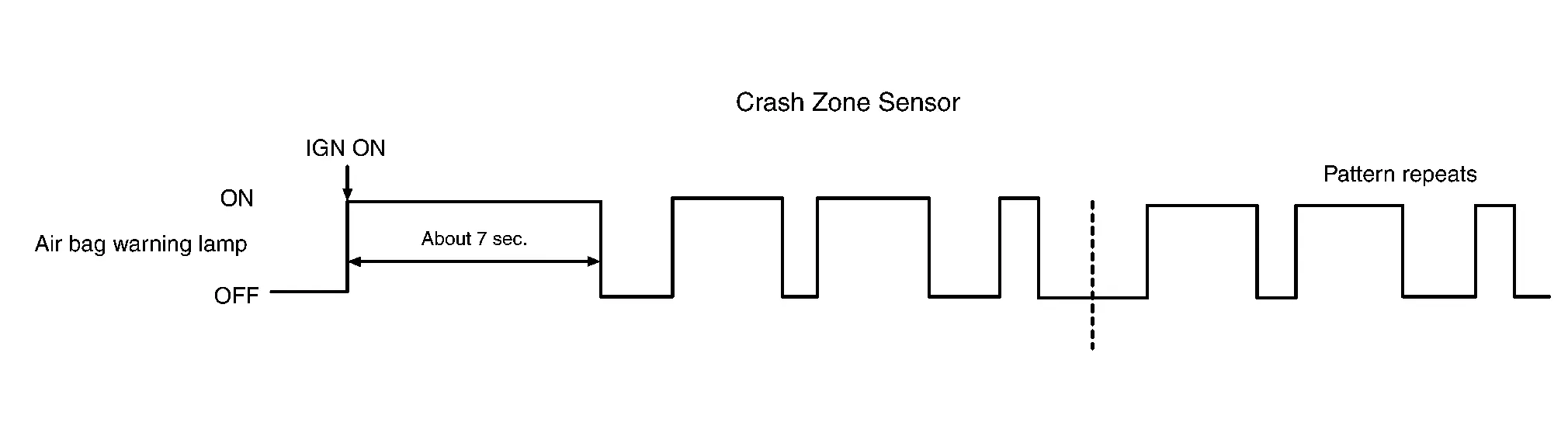

2	3	1	Crash zone sensor	Diagnosis Procedure
		2	Rear side air bag satellite sensor LH	Diagnosis Procedure
		3	Rear side air bag satellite sensor RH	Diagnosis Procedure
		4	Front door satellite sensor LH	Diagnosis Procedure
		5	Front door satellite sensor RH	Diagnosis Procedure
		6	Seat belt buckle switch LH	Diagnosis Procedure
		7	Seat belt buckle switch RH	Diagnosis Procedure
