Nissan Pathfinder: System Description - Diagnosis System (combination Meter) ++

Nissan Pathfinder (R53) 2022-2025 Service Manual / Driver Information & Multimedia :: Meter, Warning Lamp & Indicator / Full Tft Meter :: System Description / Diagnosis System (combination Meter) ++

On Board Diagnosis Function

ON BOARD DIAGNOSIS ITEM

The following meter functions can be checked during combination meter self-diagnosis mode:

  • Pointer sweep of speedometer, tachometer and gauges.

  • Illumination of color patterns for meter displays.

  • Illumination of all lamps/LEDs that are controlled by the combination meter (regardless of switch status).

  • Error code

METHOD OF STARTING

How to Initiate Self-Diagnosis Mode

  1. Ignition switch OFF.

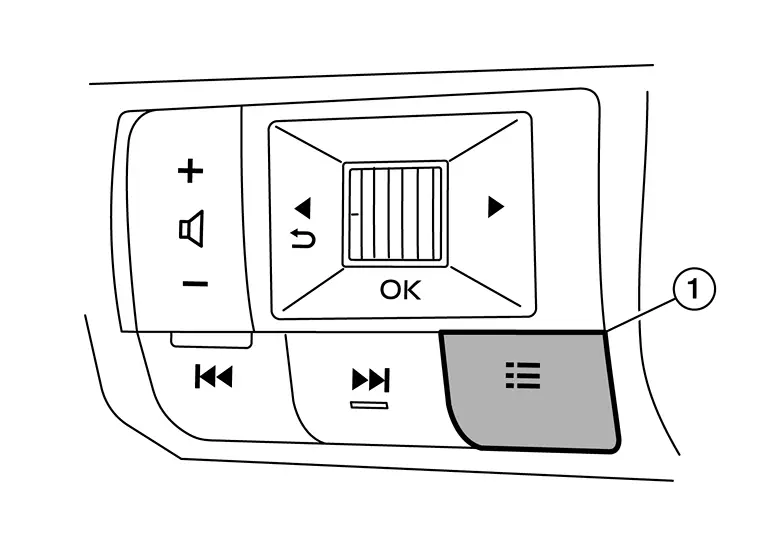

  2. While pressing the control switch (1), place ignition switch ON.

  3. Keep pressing the control switch for 1 seconds or more.

  4. Press the control switch at least 3 times. (Within 7 seconds after placing the ignition switch ON.)

  5. “Work instruction code” is indicated in the top portion of information display and self-diagnosis is started.

    NOTE:

    When on-board diagnosis does not start, check the following items and replace combination meter if the check results are normal.

    • Combination meter power supply and ground circuits. Refer to Diagnosis Procedure.

    • Steering switch signal circuits. Refer to Component Function Check.



  6. The mode switches in the order shown below each time the control switch is pressed.

    NOTE:

      • If the control switch is not operated for 20 seconds or more, the self-diagnosis mode is automatically cancelled.

      • The self-diagnosis mode is cancelled by turning the key switch OFF.

      • The self-diagnosis mode is cancelled by engine speed 170 rpm or more.



Test order Test item Description
1 Work instruction code This item is displayed, but not used.
2 Spare parts No.
Soft ware code
Flash rom No.
3 EEPROM code
4 Hardware code
5 PCB code
6 Circuit check

The pointer of the following items moves from 0 to MAX then from MAX to 0.

  • Speedometer

  • Tachometer

  • Engine coolant temperature gauge

  • Fuel gauge

NOTE:

If any one of the pointers does not sweep, replace combination meter.


7 – 10 Color check Performs the color check of the information display.
11 Error code*

Displays the error code of the following items.

  • Speedometer

  • Tachometer

  • Engine coolant temperature gauge

  • Fuel gauge

  • Steering switch
12 Warning/indicator lamp check All warning/indicator lamp illuminate.

NOTE:

When the control switch is pressed during the indication of "Test order 12", test item returns to "Test order 2".

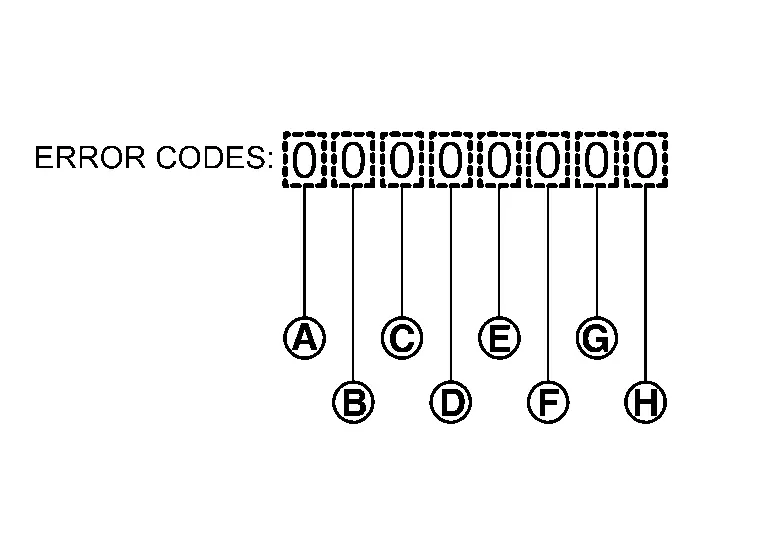

*: Error Code

Item Code Description Action to take/Reference
Speedometer 0 Normal —
1 A Nissan Pathfinder vehicle speed signal can not be received from ECM.

Select “Self Diagnostic Result” of “ENGINE.”

Refer to DTC Index.
2 A Nissan Pathfinder vehicle speed signal received from ECM is abnormal. (FFFFh)
Tachometer 0 Normal —
1 An engine speed signal cannot be received from ECM.

Select “Self Diagnostic Result” of “ENGINE.”

Refer to DTC Index.
Fuel gauge 0 Normal —
1 Fuel gauge circuit is short. Refer to Diagnosis Procedure.
2 Fuel gauge circuit is open.
Engine coolant temperature gauge 0 Normal —
1 An engine coolant temperature signal cannot be received from ECM.

Select “Self Diagnostic Result” of “ENGINE.”

Refer to DTC Index.

  • Illumination control switch

  • Steering switch (control switch)

 0 Normal —
1 When judging that the illumination control switch signal circuit is short-circuited for 5 minutes or more. Refer to Diagnosis Procedure.
2 When judging that the steering switch (control switch) signal circuit is short-circuited for 5 minutes or more. Refer to Component Function Check.
3 When judging that the illumination control switch and steering switch (control switch) signal circuit are short-circuited for 5 minutes or more. Refer to Diagnosis Procedure and Component Function Check.
— 0 Displays “0” constantly. —
— 0 Displays “0” constantly. —
— 0 Displays “0” constantly. —

CONSULT Function (METER/M&A)

APPLICATION ITEMS

CONSULT can perform the following diagnosis modes via CAN communication and the combination meter.

Diagnosis mode Description
Self Diagnostic Result Display non-network DTC which combination meter memorizes.
Data Monitor Displays combination meter input/output data in real time.
ECU Identification Displays combination meter part number.
Warning History Lighting history of the warning lamp and indicator lamp can be checked.
Network-DTC Display network DTC which combination meter memorizes when performing "Diagnosis (All System)".
CAN Diag Support Monitor*

NOTE:

The mode is indicated, but not monitored.



*: Displays when performing "Diagnosis (All System)".

SELF DIAG RESULT

Refer to DTC Index.



Freeze frame data (FFD)

When DTC is detected, the following vehicle condition is recorded and it is displayed on the CONSULT screen.

Item name Display item
ODO/TRIP METER

Records an odometer value when DTC is detected.

  • Current odometer value is shown when the displayed DTC means a present malfunction.

  • Odometer value of the time of returning to normal is shown when the displayed DTC means a past malfunction.
DTC count Records the number of times DTC was detected.

DATA MONITOR

NOTE:

The following table includes information (items) inapplicable to this Nissan Pathfinder vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.



Display Item List

X: Applicable

Display item [Unit]

MAIN

SIGNALS		 Description

SPEED METER

[mph or km/h]		 X

Value of Nissan Pathfinder vehicle speed signal received from ECM via CAN communication.

NOTE:

655.35 is displayed when the malfunction signal is received.



SPEED OUTPUT

[mph or km/h]		 X

Nissan Pathfinder Vehicle speed signal value transmitted to other units via CAN communication.

NOTE:

655.35 is displayed when the malfunction signal is received.



ODO OUTPUT

[mph or km/h]		   Odometer signal received from ABS actuator and electric unit (control unit) via CAN communication.

TACHO METER

[rpm]		 X

Value of the engine speed signal received from ECM via CAN communication.

NOTE:

8191.875 is displayed when the malfunction signal is received.



FUEL METER

[L]		 X Fuel level indicated on combination meter.

W TEMP METER

[°F or °C]		 X

Value of engine coolant temperature signal is received from ECM via CAN communication.

NOTE:

215 is displayed when the malfunction signal is input.



ABS W/L

[On/Off]		   Status of ABS warning lamp detected from ABS warning lamp signal is received from ABS actuator and electric unit (control unit) via CAN communication.

VDC/TCS IND

[On/Off]		   Status of VDC OFF indicator lamp detected from VDC OFF indicator lamp signal is received from ABS actuator and electric unit (control unit) via CAN communication.

SLIP IND

[On/Off]		   Status of VDC warning lamp detected from VDC warning lamp signal received from ABS actuator and electric unit (control unit) via CAN communication.

BRAKE W/L

[On/Off]

Status of brake warning lamp detected from brake warning lamp signal is received from ABS actuator and electric unit (control unit) via CAN communication and brake fluid level switch signal from brake fluid level switch.

NOTE:

Displays “Off” if the brake warning lamp is illuminated when the valve check starts, the parking brake switch is turned ON or the brake fluid level switch is turned ON.



E-PKB warning lamp

[On/Off]		   Status of electric parking brake warning lamp detected from electric parking brake warning lamp signal from electric parking brake control module via CAN communication.

DOOR W/L

[On/Off]		   Status of door open warning detected from door switch signal received from BCM via CAN communication.

TRUNK/GLAS-H

[Off]

NOTE:

This item is displayed, but cannot be monitored.



HI-BEAM IND

[On/Off]		   Status of high beam indicator lamp detected from high beam request signal is received from BCM via CAN communication.

TURN IND

[On/Off]		   Status of turn signal indicator lamp detected from turn indicator signal is received from BCM via CAN communication.

FR FOG IND

[On/Off]		   Status of front fog lamp indicator lamp detected from front fog light request signal is received from BCM via CAN communication.

RR FOG IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LIGHT IND

[On/Off]		   Status of position lamp indicator lamp detected from position light request signal is received from BCM via CAN communication.

OIL W/L

[On/Off]		   Status of engine oil pressure warning detected from engine oil pressure warning lamp signal is received from ECM via CAN communication.

MIL

[On/Off]		   Status of malfunction indicator lamp detected from malfunctioning indicator signal is received from ECM via CAN communication.

GLOW IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



C-ENG2 W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CRUISE IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CRUISE W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



BA W/L

[On/Off]		   Status of AEB warning lamp judged from AEB warning lamp signal received from ADAS control unit 2 via CAN communication.

ATC/T-AMT W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ATF TEMP W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CVT IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD LOCK IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



FUEL W/L

[On/Off]		   Low fuel warning status detected by the identified fuel level.

WASHER W/L

[On/Off]		   Status of low washer fluid warning judged from washer level switch input to combination meter.

AIR PRES W/L

[On/Off]		   Status of low tire pressure warning lamp judged from low tire pressure lamp signal received from BCM via CAN communication.

KEY G/Y W/L

[On/Off]		   Status of Intelligent Key system malfunction detected from meter display signal is received from BCM via CAN communication.

KEY R W/L

[On/Off]		   Status of Intelligent Key system malfunction detected from meter display signal is received from BCM via CAN communication.

KEY KNOB W/L

[On/Off]		   Status of Intelligent Key system malfunction detected from meter display signal is received from BCM via CAN communication.

EPS W/L

[On/Off]		   Status of power steering warning lamp detected from power steering warning lamp signal is received from EPS control unit via CAN communication.

e-4WD W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AFS OFF IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WAS/RAS W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



DDS W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LANE W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LDP IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SLOW IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



READY IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



INVT TEMP IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SYS FAIL W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SFT POSI W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



HV BAT W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



HEV BRAKE W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SFT OPER W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LANE KEEP W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



IDOL STOP IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CHAGE W/L

[On/Off]		   Status of charge warning lamp judged from 12V battery charge warning lamp signal received from ECM via CAN communication.

4WD AUTO IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



DPF W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TRAILER IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ECO MODE IND

[On/Off]		   Status of ECO drive indicator lamp judged from ECO drive indicator lamp signal received from ECM via CAN communication.

ATP W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



E-SUS IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



DCA IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MT SYNC REV IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



FILTER W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Urea remaining W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ACC TARGET

[On/Off]		   Status of Nissan Pathfinder vehicle ahead detection indicator judged from meter display signal received from ADAS control unit 2 via CAN communication.

ACC DISTANCE

[Off, SHORT, Mid, LONG]		   Status of set distance indicator judged from meter display signal received from ADAS control unit 2 via CAN communication.

ACC SET SPEED

[km/h/Off]		   Status of set Nissan Pathfinder vehicle speed indicator judged from meter display signal received from ADAS control unit 2 via CAN communication.

ACC UNIT

[On/Off]		   Status of display unit judged from meter display signal received from ADAS control unit 2 via CAN communication.

SHIFT IND

[P, R, N, D, S, L, B, 1–6, M1–M8, A1–A6]		   Status of shift position indicator judged from shift position signal received from TCM with CAN communication line.

GEAR SHIFT IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD IND

[AUTO]

NOTE:

This item is displayed, but cannot be monitored.



OFFLOAD IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ECO DRIVE IND G

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ECO DRIVE IND O

[Off]

NOTE:

This item is displayed, but cannot be monitored.



BSW IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



DRIVE MODE STATS

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SCR/OIL DISP

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TOW MODE IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CHECK SUS IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



FUEL CAP W/L

[On/Off]		   Status of fuel filler cap warning display detected from fuel filler cap warning display signal received from ECM via CAN communication.

E-PKB indicator

[On/Off]		   Status of electric parking brake indicator lamp detected from electric parking brake indicator lamp signal from electric parking brake control module via CAN communication.

PNP P SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



PNP N SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



O/D OFF SW

[On/Off]		   Status of SPORT mode switch.

RANGE 1

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AT S MODE SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AT P MODE SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



M RANGE SW

[On/Off]		   Status of manual mode switch.

NM RANGE SW

[On/Off]		   Status of non-manual mode switch.

AT SFT UP SW

[On/Off]		   Status of manual mode shift up switch.

AT SFT DWN SW

[On/Off]		   Status of manual mode shift down switch.

ST SFT UP SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ST SFT DWN SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AIR COND SIG

[Off]

NOTE:

This item is displayed, but cannot be monitored.



HEATER FAN SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



REAR DEF SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



A/C LOW TEMP

[Off]

NOTE:

This item is displayed, but cannot be monitored.



COMP F/B SIG

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD LOCK SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SYNC MODE

[Off]

NOTE:

This item is displayed, but cannot be monitored.



PKB SW

[On/Off]		   Status of parking brake switch.

BUCKLE SW

[On/Off]		   Status of front seat belt buckle switch (driver side).

BRAKE OIL SW

[On/Off]		   Status of brake fluid level switch.

AIR BAG SIG

[On/Off]		   Status of SRS air bag warning lamp signal received from air bag diagnosis sensor unit via CAN communication.

CHG SIG

[On/Off]		   Status 12V battery charge warning lamp signal received from ECM via CAN communication.

RR COMB STATE

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ABS EXIST

[Off]

NOTE:

This item is displayed, but cannot be monitored.



VDC/TCS EXIST

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AMB POWER

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MODE A SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MODE B SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MT SYNC REV SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



PASS BUCKLE SW

[On/Off]		   Status of passenger seat belt buckle switch.

TOW MODE SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ECO MODE SW

[On/Off]		   Status of ECO mode switch.

SPORT MODE SW

[On/Off]		   Status of SPORT mode switch.

Electric shift W/L (red)

[On/Off]		   Status of electric shift warning lamp (red) detected from electric shift warning lamp signal received from electric shift control module via CAN communication.

LED LMP R OPEN

[On/Off]		   Status of front combination lamp RH judged based on headlamp warning signal input from IPDM E/R via CAN communication.

LED LMP L OPEN

[On/Off]		   Status of front combination lamp LH judged based on headlamp warning signal input from IPDM E/R via CAN communication.

DISTANCE

[km]		   Value of distance to empty calculated by combination meter.

OUTSIDE TEMP

[°F or °C]

Ambient temperature value converted from ambient sensor signal received from ambient sensor.

NOTE:

This may not match with the temperature value indicated on the information display. (Because the information display value is a corrected value from the ambient sensor input value.)



FUEL LOW SIG

[On/Off]		   Low fuel warning status detected by the identified fuel level.

CRANKING SIG

[On/Off]		   Cranking status is displayed.

ST CNT SIG

[On/Off]		   Starter control status judged from starter control status signal is received from BCM via CAN communication.

DOOR LOCK SIG

[On/Off]		   Status of door lock switch.

DR DOOR SIG

[LHD/RHD]		   Status of driver side door.

BUZZER

[On/Off]		 X Buzzer status (in the combination meter) is detected from the buzzer output signal received from each unit via CAN communication and the warning output condition of the combination meter.

BATTERY CIRCUIT STATUS

[NORMAL/OPEN]		   Status of fuse for shipping mode from shipping mode status signal received from BCM via CAN communication.

PARKING ASSIST DSP

[On/Off]		   Status of sonar display received from sonar control unit via CAN communication.

PARKING ASSIST SENSOR

[Off/Rear/FRONT/On/Not support]		   Activation status of sonar system received from sonar control unit via CAN communication.

PARKING ASSIST VOLUME

[High/Medium/Low/Not support]		   Status of sonar volume received from sonar control unit via CAN communication.

PARKING ASSIST RANGE

[Far/Medium/Near/Not support]		   Status of sonar range received from sonar control unit via CAN communication.

RAB W/L

[On/Off]		   Status of RAB warning lamp judged from RAB warning lamp signal received from ADAS control unit 2 via CAN communication.

Electric shift W/L

[On/Off]		   Status of electric shift warning lamp detected from electric shift warning lamp signal received from electric shift control module via CAN communication.

Sailing stop W/L

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ALL PWER MTER

[kw]

NOTE:

This item is displayed, but cannot be monitored.



SOC METER

[%]

NOTE:

This item is displayed, but cannot be monitored.



VOLTMETER

[V]

NOTE:

This item is displayed, but cannot be monitored.



BRAKE PAD W/L

[V]

NOTE:

This item is displayed, but cannot be monitored.



TPMS DISP

[On/Off]		   Status of TPMS display received from BCM via CAN communication.

TIRE STATUS FR

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TIRE STATUS FL

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TIRE STATUS RR

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TIRE STATUS RL

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SONAR SET AVA

[Available/Unavailable]		   Status of sonar setting of combination meter.

STRG SW INPUT

[SW1-SW12, NOT INPUT]		   Status of steering switch.

STRG SW OUTPUT

[SW1-SW12, NOT OUTPUT]		   Status of steering switch output signal.

Sonar set output

[NO SW ST, FEB Off, FEB On, LDW OFF, LDW ON, BSW OFF, BSW ON, P MV OFF, P MV ON, SONAR OFF, SONAR ON, P SEN OFF, P SEN ON, P SEN FRONT, P BUZ HIGH, P BUZ MED, P BUZ LOW, P RNG FAR, P RNG MED, P RNG NEAR]		   Status of Driving Aids and Parking Aids set on the information display of the combination meter.

HI-BEAM ASST IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AVM display

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SONAR DET STATUS

[On/Off]		   Activation status of sonar system received from sonar control unit via CAN communication.

SONAR WARN

[Off/DEACT/ERROR]		   Status of parking sensor error detected from parking sensor error signal is received from sonar control unit via CAN communication.

SONAR DET DSP RC

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of center sensor rear detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA RC

[On/Off]		   Activation status of center sensor rear judged from a sonar indicator signal received from the sonar control unit via CAN communication.

DIPPED BEAM IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SONAR DET DSP RL

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of corner sensor rear LH detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA RL

[On/Off]		   Activation status of corner sensor rear LH judged from a sonar indicator signal received from the sonar control unit via CAN communication.

SONAR DET DSP RR

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of corner sensor rear RH detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA RR

[On/Off]		   Activation status of corner sensor rear RH judged from a sonar indicator signal received from the sonar control unit via CAN communication.

SONAR DET DSP FC

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of center sensor front detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA FC

[On/Off]		   Activation status of center sensor front judged from a sonar indicator signal received from the sonar control unit via CAN communication.

SONAR DET DSP FL

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of corner sensor front LH detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA FL

[On/Off]		   Activation status of corner sensor front LH judged from a sonar indicator signal received from the sonar control unit via CAN communication.

SONAR DET DSP FR

[LEVEL1/LEVEL2/LEVEL3/LEVEL4]		   Status of corner sensor front RH detection obstacle from sonar control unit via CAN communication.

SONAR DET DSP AREA FR

[On/Off]		   Activation status of corner sensor front RH judged from a sonar indicator signal received from the sonar control unit via CAN communication.

SONAR DIST DSP

[Off/stop/30cm/40cm/50cm/60cm]		   Sonar of information display of sonar sensor detection distance from sonar control unit via CAN communication.

Engine Off timer

[0]

NOTE:

This item is displayed, but cannot be monitored.



TRQ DSTRBT

[%]

NOTE:

This item is displayed, but cannot be monitored.



LANE IND

[WARN ON/BLINK/On/Off]		   Status of LANE display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

FCW IND

[WARN ON/BLINK/On/Off]		   Status of FCW system display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

LDW IND

[WARN ON/BLINK/On/Off]		   Status of LDW system display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

TPMS FLT TIRE

[On/Off]		   Status of flat tire detected from tire pressure data signal is received from BCM via CAN communication.

TPMS PRESS L

[On/Off]		   Status of tire pressure low from tire pressure data signal is received from BCM via CAN communication.

4WD CL TMP H

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD TIRE CHCK

[Off]

NOTE:

This item is displayed, but cannot be monitored.



4WD SYS MALF

[Off]

NOTE:

This item is displayed, but cannot be monitored.



E SUS MALF

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ABS MALF

[On/Off]		   Status of ABS malfunction display.

VDC MALF

[On/Off]		   Status of VDC malfunction display.

ENG SYS CHCK

[On/Off]		   Status of engine warning display.

ASCD SYS MALF

[On/Off]		   Status of ASCD malfunction display.

OVER-BOOST IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ASCD SPD BLNK

[On/Off]		   Blinking status of ASCD set Nissan Pathfinder vehicle speed judged by the ASCD status signal received from ECM via CAN communication.

ASCD STATUS

[Off, SL On, SL sus, SL inhi, CC On, CC sus, CC inhi, N/A]		   Status of ASCD status display judged by the ASCD status signal received from ECM via CAN communication.

ASCD REQ SPD

[km/h]		   ASCD set Nissan Pathfinder vehicle speed value judged by the ASCD status signal received from ECM via CAN communication.

Urea remain

[Off]

NOTE:

This item is displayed, but cannot be monitored.



E/O CHG TMNG

[0]

NOTE:

This item is displayed, but cannot be monitored.



E/O CHG TMNG RST

[On/Off]		   Resetting of a remaining distance to the engine oil change time.

Urea time

[0]

NOTE:

This item is displayed, but cannot be monitored.



AT STOP START IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AT STOP START STS

[Off]

NOTE:

This item is displayed, but cannot be monitored.



AT STOP START SW

[Off]

NOTE:

This item is displayed, but cannot be monitored.



HILL HOLD WARNING

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ASSIST/CHARGE GAUGE

[%]

NOTE:

This item is displayed, but cannot be monitored.



EV IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



ACCEL GAUGE

[%]

NOTE:

This item is displayed, but cannot be monitored.



REMAINING ENERGY GAUGE

[%]

NOTE:

This item is displayed, but cannot be monitored.



ECO ACCEL POSITION

[%]		   Status of ECO pedal guide display.

REGENERATIVE BRAKE TRQ

[%]

NOTE:

This item is displayed, but cannot be monitored.



MECHANICAL BRAKE TRQ

[%]

NOTE:

This item is displayed, but cannot be monitored.



ENERGY FLOW

[MODE8]

NOTE:

This item is displayed, but cannot be monitored.



ECO DRIVE NAVI

[LEVEL 0 - 30]		   Status of ECO pedal guide detected from ECO pedal guide signal received from ECM via CAN communication.

Target front Nissan Pathfinder vehicle

[On/Off/BLINK/IBA BLINK]		   Status of target front Nissan Pathfinder vehicle display.

BCI

[Off]

NOTE:

This item is displayed, but cannot be monitored.



BCI LEFT

[Off]

NOTE:

This item is displayed, but cannot be monitored.



BCI RIGHT

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CRUISE READY IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Set Forward Emergency Brake

[On/Off/Not support]		   Status of AEB system setting.

SET LDW

[On/Off/Not support]		   Status of LDW system setting.

SET BSW

[On/Off/Not support]		   Status of BSW system setting.

Set Lane timing

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET BCI BRAKE RESUME

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET DCA

[Not support]

NOTE:

This item is displayed, but cannot be monitored.



SET LDP

[On/Off/Not support]		   Status of I‐LI system setting.

SET DCA TIMING

[Not support]

NOTE:

This item is displayed, but cannot be monitored.



SET RMOD

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET BCI IGNITION STATUS

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET IBA

[Not support]

NOTE:

This item is displayed, but cannot be monitored.



MSS RADER DEACTIVATED

[Off]

NOTE:

This item is displayed, but cannot be monitored.



CHASSIS CONTROL WARN

[On/Off]		   Status of chassis control display (warning) from chassis control malfunction signal is received from chassis control module via CAN communication.

Set Direct Adaptive Steering

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Set Emergency Assist Pedal

[On/Off/Not support]		   Status of EAPM setting.

Set No Entry

[Not support]

NOTE:

This item is displayed, but cannot be monitored.



Set Traffic Sign Recognition

[On/Off/Not support]		   Status of TSR setting.

SIGNAL WARNING STATUS

[On/Off]		   Status of signal warning.

HEV system state

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LOW LI-ION BAT CHG WARN

[Off]

NOTE:

This item is displayed, but cannot be monitored.



VSP OFF IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



TIRE PRESS FR

[kPa, kg/cm2 or Psi]		   The data of front RH tire pressure from BCM via CAN communication.

TIRE PRESS FL

[kPa, kg/cm2 or Psi]		   The data of front LH tire pressure from BCM via CAN communication.

TIRE PRESS RR

[kPa, kg/cm2 or Psi]		   The data of rear RH tire pressure from BCM via CAN communication.

TIRE PRESS RL

[kPa, kg/cm2 or Psi]		   The data of rear LH tire pressure from BCM via CAN communication.

BSW IND

[WARN ON/BLINK/On/Off]		   Status of BSW system display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

IBA IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



DCA IND

[Off]

NOTE:

This item is displayed, but cannot be monitored.



LDP IND

[On/Off]		   Status of I-LI system display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

BSI IND

[On/Off]		   Status of I-BSI system display detected from meter display signal is received from ADAS control unit 2 via CAN communication.

STATUS CHECK DSP

[Off]

NOTE:

This item is displayed, but cannot be monitored.



SET SPEED FLASHING

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MSS STATUS WARNING ERR

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MSS NO WARN SET

[Off]

NOTE:

This item is displayed, but cannot be monitored.



MSS NO DYNAMIC SET

[Off]

NOTE:

This item is displayed, but cannot be monitored.



PA display request

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Ack for PA

[Not PA]

NOTE:

This item is displayed, but cannot be monitored.



Camera display request

[Off]

NOTE:

This item is displayed, but cannot be monitored.



PA malfunction

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Steering SW output

[Off]

NOTE:

This item is displayed, but cannot be monitored.



Status of call display

[On/Off]		   Status of ProPILOT Assist system display jump function setting detected from ProPILOT Assist system status signal is received from ADAS control unit 2 via CAN communication.

Lane detect

[On/Off]		   Status of lane detection.

PP inst message

[Speed/Active 2/Active1/Standby/Off/No msg]		   Status of ProPILOT Assist system instruction message.

PP display status

[Stby/Stby P/Active/Active P/Free/Free H/Malf/Off]		   Status of ProPILOT Assist system display detected from ProPILOT Assist system status signal is received from ADAS control unit 2 via CAN communication.

Hand free status

[On/Off]		   Status of hands free warning display.

PP cancel info

[No act/Speed/Target/PA/Obstacle/Weather/E-PKB/Seatbelt]		   Status of ProPILOT Assist system cancel information.

FEB status

[On/Off]		   Status of AEB system function.

PP setting status

[Temp 1/Avail 1/Avail 2/Temp 2]		   Status of ProPILOT Assist system function detected from ProPILOT Assist system status signal is received from ADAS control unit 2 via CAN communication.
Nissan Pathfinder Vehicle distance

NOTE:

This item is displayed, but cannot be monitored.



EAPM status

[On/Off/No spprt]



 Status of EAPM setting.

Traffic sign

[Signal/No entry/Stop/No msg]



 Status of TSR display.

ECU IDENTIFICATION

The combination meter part number is displayed.

WARNING HISTORY

  • Stores histories when warning/indicator lamp is turned on.

  • “WARNING HISTORY” indicates the “TIME” when the warning/indicator lamp is turned on.

  • The “TIME” above is:

    • 0: The condition that the warning/indicator lamp has been turned on 1 or more times after starting the engine and waiting for 30 seconds.

    • 1 - 39: The number of times the engine was restarted after the 0 condition.

    • NO WARNING HISTORY: Stores NO (0) turning on history of warning/indicator lamp.

NOTE:

    • WARNING HISTORY is not stored for approximately 30 seconds after the engine starts.

    • Brake warning lamp does not store any history when the parking brake is applied or the brake fluid level gets low.



Display Item

Display item Description
ABS W/L Lighting history of ABS warning lamp.
VDC/TCS IND Lighting history of VDC OFF indicator lamp.
SLIP IND Lighting history of VDC warning lamp.
BRAKE W/L Lighting history of brake warning lamp.
OIL W/L Lighting history of engine oil pressure warning lamp.
C-ENG W/L Lighting history of malfunction indicator lamp (MIL).
BA W/L Lighting history of AEB warning lamp.
AIR PRES W/L Lighting history of low tire pressure warning lamp.
EPS W/L Lighting history of electric power steering warning lamp.
CHAGE W/L Lighting history of 12V battery charge warning lamp.

NOTE:

In items displayed on the CONSULT screen, only those listed in the above table are used.



next pagenext pageSqueak and Rattle Trouble Diagnoses ++Cruise Control Systemnext pagenext page

Nissan Pathfinder (R53) 2022-2025 Service Manual

Contact Us

Nissan Pathfinder Info Center

Email: info@nipathfinder.com

Phone: +1 (800) 123-4567

Address: 123 Pathfinder Blvd, Nashville, TN 37214, USA

Working Hours: Mon–Fri, 9:00 AM – 5:00 PM (EST)

More Nissan autos

More Nissan Manuals

More Manuals

© 2023-2025 - Nissan Pathfinder technical manuals - www.nipathfinder.com
