Noise, Vibration and Harshness (nvh) Troubleshooting (Symptom Diagnosis) Nissan Pathfinder R53
NVH Troubleshooting Chart
Use chart below to find the cause of the symptom. If necessary, repair or replace these parts.
| Possible cause and SUSPECTED PARTS | SYMPTOM | Reference | |||||
| FRONT SUSPENSION | |||||||
| Noise | Shake | Vibration | Shimmy | Shudder | Poor quality ride or handling | ||
| Improper installation, looseness | x | x | x | x | x | x | Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View |
| Shock absorber deformation, damage or deflection | x | x | x | x | x | x | Refer to Inspection |
| Bushing or mounting deterioration | x | x | x | x | x | x | — |
| Parts interference | x | x | x | x | x | — | |
| Spring fatigue | x | x | x | — | |||
| Suspension looseness | x | x | Refer to Exploded View, Refer to Exploded View, Refer to Exploded View, Refer to Exploded View | ||||
| Incorrect wheel alignment | x | x | Refer to Inspection | ||||
| Stabilizer bar fatigue | x | Refer to Inspection | |||||
| PROPELLER SHAFT (4WD) | x | x | x | Refer to Inspection | |||
| DIFFERENTIAL (4WD) | x | Refer to Inspection | |||||
| FRONT AXLE | x | x | x | x | x | x | Refer to Inspection |
| ROAD WHEEL AND TIRE | x | x | x | x | x | x | Refer to Inspection |
| DRIVE SHAFT | x | x | x | Refer to Inspection (FRONT DRIVE SHAFT) or Inspection (REAR DRIVE SHAFT) | |||
| BRAKE | x | x | x | x | Refer to NVH Troubleshooting Chart | ||
| STEERING | x | x | x | x | x | Refer to NVH Troubleshooting Chart | |
×: Applicable
Front Suspension Member (Unit Removal and Installation) Nissan Pathfinder
Exploded View
| 1. | Front suspension member | 2. | Rebound stopper | 3. | Front suspension member stay |
| A. | Refer to INSTALLATION. |
 |
Front |
Removal and Installation
REMOVAL
Remove the steering gear. Refer to Removal and Installation.
Remove the steering knuckles. Refer to Removal and Installation.
Remove the transverse links. Refer to Removal and Installation.
Remove the stabilizer bar. Refer to Removal and Installation.
Inspect the components. Refer to Inspection.
INSTALLATION
Installation is in the reverse order of removal.
-

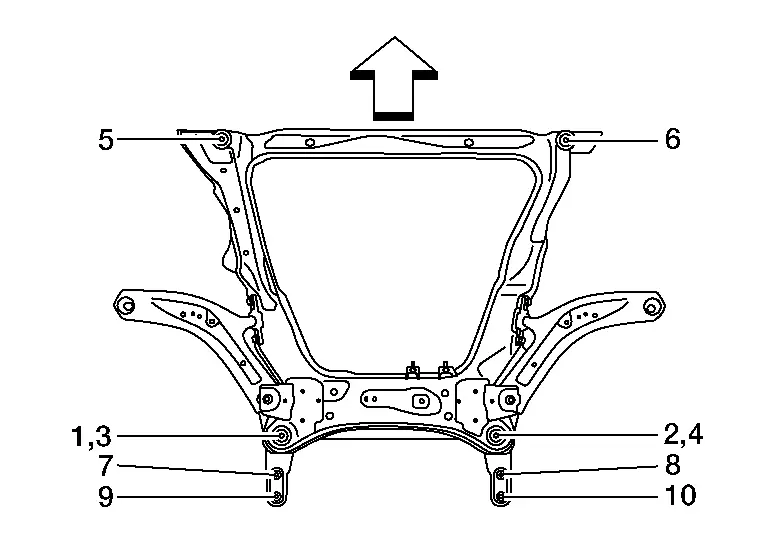

Install the suspension member bolts in the order shown. Perform the final tightening of each part under unladen conditions with tires on ground.
Bolts 1-2 Finger tightening Bolts 3-6 : 155 N·m (16 kg-m, 114 ft-lb) Bolts 7-10 : 47 N·m (4.8 kg-m, 35 ft-lb)
Front
Inspection
INSPECTION AFTER REMOVAL
Check the front suspension member for significant deformation, cracks, or damages. Replace it if necessary.
INSPECTION AFTER INSTALLATION
Check wheel sensor harness for proper connection. Refer to Exploded View.
Check wheel alignment. Refer to Inspection.
Adjust the neutral position of the steering angle sensor. Refer to Description.
